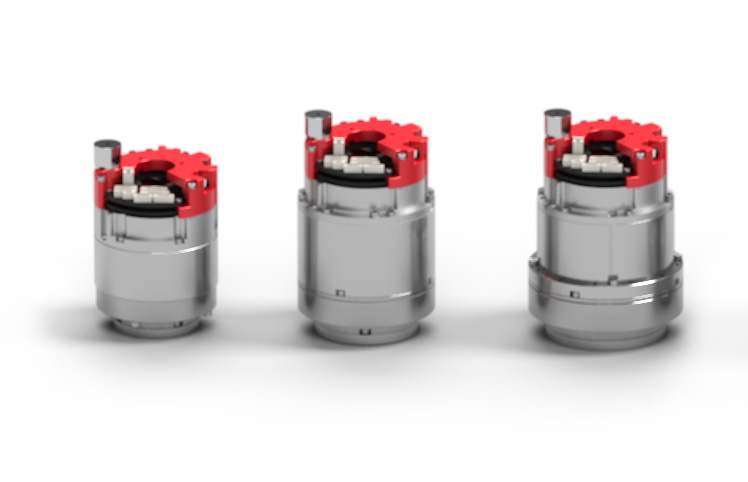

ACTILINK-JP (14-17-20)

• Strain Wave Gear Size 14 Actilink JP-14; Weight: 1200 g; Diameter: 72 mm; Hollow shaft diameter: 11 mm; Length: 110 mm; Peak Torque: 24 Nm; Braking Torque: 131 Nm; No-Load Speed: 65 rpm; Torque / Weight (Peak): 28.3Nm/kg; Type: I Type; Strain Wave Gear Size:14; 17 Actilink JP-17; Weight: 1560 g; Diameter: 80 mm; Hollow shaft diameter: 11 mm; Length: 131 mm; Peak Torque: 66 Nm; Braking Torque: 131 Nm; No-Load Speed: 48 rpm; Torque / Weight (Peak): 42.3Nm/kg; Type: I Type; Strain Wave Gear Size: 17; 20 Actilink JP-20; Weight: 1900 g; Diameter: 90 mm; Hollow shaft diameter: 11 mm; Length: 133 mm; Peak Torque: 102 Nm; Braking Torque: 131 Nm; No-Load Speed: 48 rpm; Torque / Weight (Peak): 53.7Nm/kg; Type:I Type; Strain Wave Gear Size: 20;
• Gear Ratio
  • 1:100
• Safety Option Safety Option: STO/SBC via IO Safe Motion
• Brake Option Brake Option: None Brake Option: Pin Brake Brake Option: Electromagnetic Clutch Brake
• Encoder Double Encoder 2x20bit

This combination does not exist.
