ACTILINK-JD 8 Circulo RFQ	ACTILINK-JD 10 Circulo RFQ	ACTILINK-JD 12 Circulo RFQ
ACTILINK-JP (14-17-20) RFQ	ACTILINK-JP (25-32) RFQ

Brake Option: None

Brake Option: Brake

Brake Option: Pin Brake

Brake Option: Electromagnetic Clutch Brake

Safety Option: STO/SBC via IO

Safety Option: None

Safe Motion

Safe Motion for 14/17/20

Safe Motion for 25/32

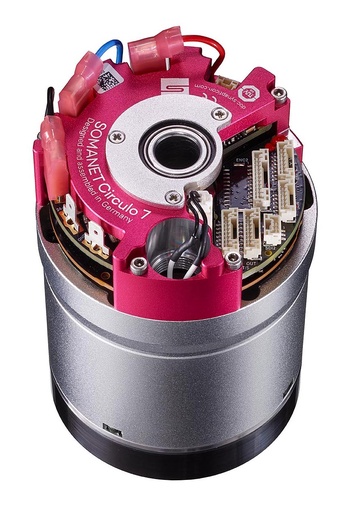

14 Actilink JP-14; Weight: 1200 g; Diameter: 72 mm; Hollow shaft diameter: 11 mm; Length: 110 mm; Peak Torque: 24 Nm; Braking Torque: 131 Nm; No-Load Speed: 65 rpm; Torque / Weight (Peak): 28.3Nm/kg; Type: I Type; Strain Wave Gear Size:14;

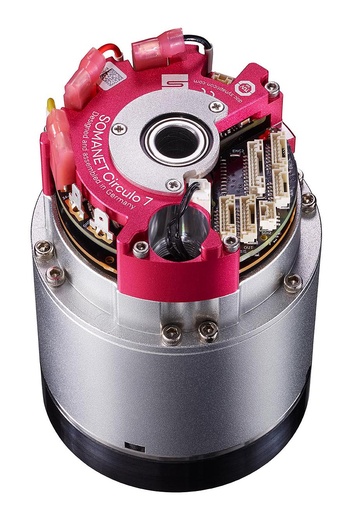

17 Actilink JP-17; Weight: 1560 g; Diameter: 80 mm; Hollow shaft diameter: 11 mm; Length: 131 mm; Peak Torque: 66 Nm; Braking Torque: 131 Nm; No-Load Speed: 48 rpm; Torque / Weight (Peak): 42.3Nm/kg; Type: I Type; Strain Wave Gear Size: 17;

20 Actilink JP-20; Weight: 1900 g; Diameter: 90 mm; Hollow shaft diameter: 11 mm; Length: 133 mm; Peak Torque: 102 Nm; Braking Torque: 131 Nm; No-Load Speed: 48 rpm; Torque / Weight (Peak): 53.7Nm/kg; Type:I Type; Strain Wave Gear Size: 20;

25 Actilink JP-25; Weight: 3940 g; Diameter: 110 mm; Hollow shaft diameter: 18 mm; Length: 159 mm; Peak Torque: 194 Nm; Braking Torque: 404 Nm; No-Load Speed: 40 rpm; Torque / Weight (Peak): 49.2Nm/kg; ; Type: I Type; Strain Wave Gear Size:25;

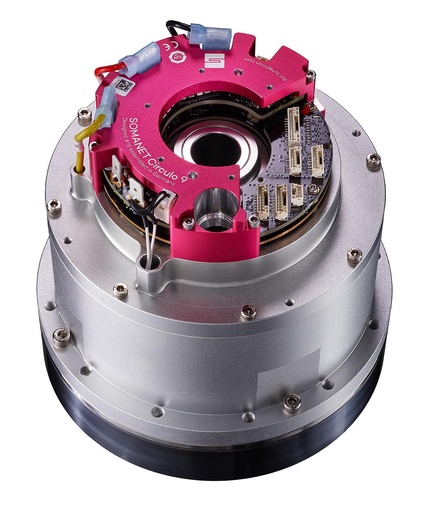

32 Actilink JP-32; Weight: 5790 g; Diameter: 142 mm; Hollow shaft diameter: 18 mm; Length: 168 mm; Peak Torque: 411 Nm; Braking Torque: 404 Nm; No-Load Speed: 20 rpm; Torque / Weight (Peak): 71Nm/kg;Type: I Type; Strain Wave Gear Size: 32;

Single Encoder

Double Encoder 2x20bit

Dual Encoder Output Shaft

Dual Encoder

1:100

1:20

1:50

Safety: None

Safety: STO, SBC

Safety: STO+SBC !DO NOT USE!

Safety: Safe Fieldbus, Safe Motion

Safety: Safe Fieldbus, STO, SBC

Clear Filters

ACTILINK J Robot Joint Actuators

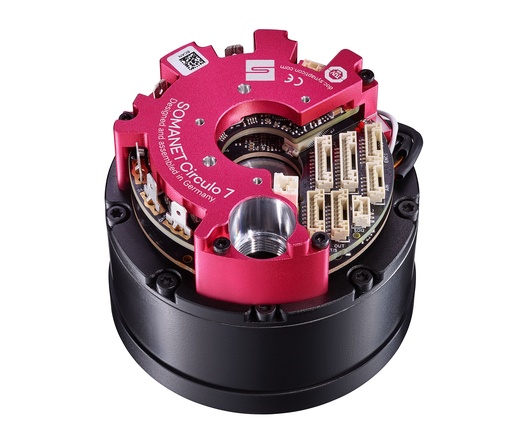

ACTILINK-JD 8 Circulo

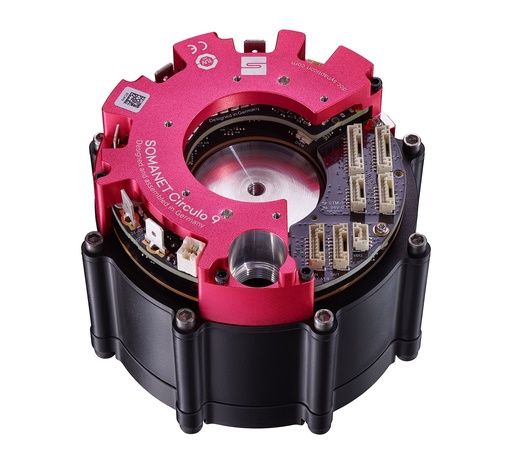

ACTILINK-JD 10 Circulo

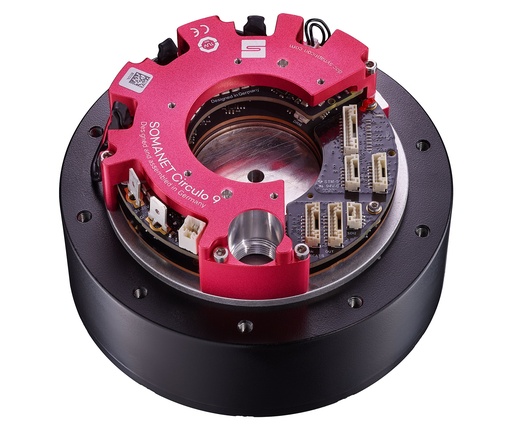

ACTILINK-JD 12 Circulo

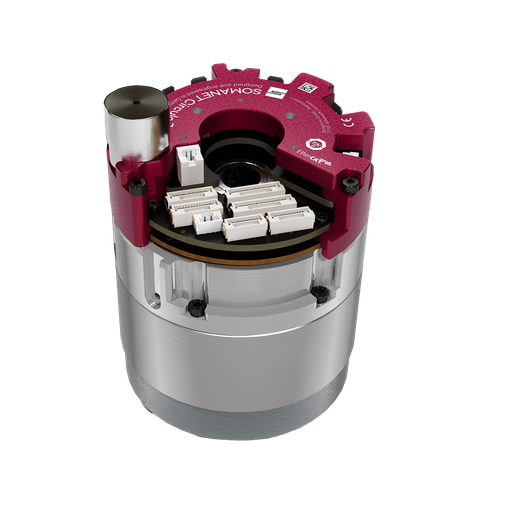

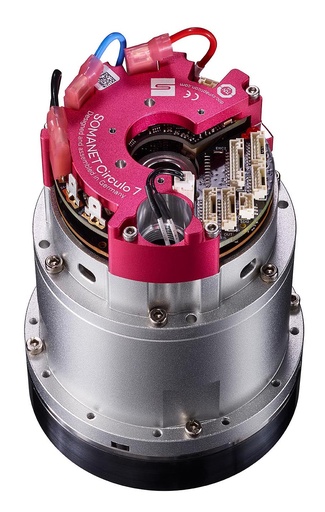

ACTILINK-JP (14-17-20)

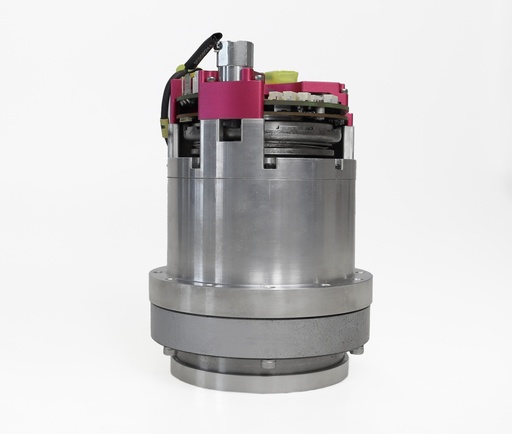

ACTILINK-JP (25-32)
