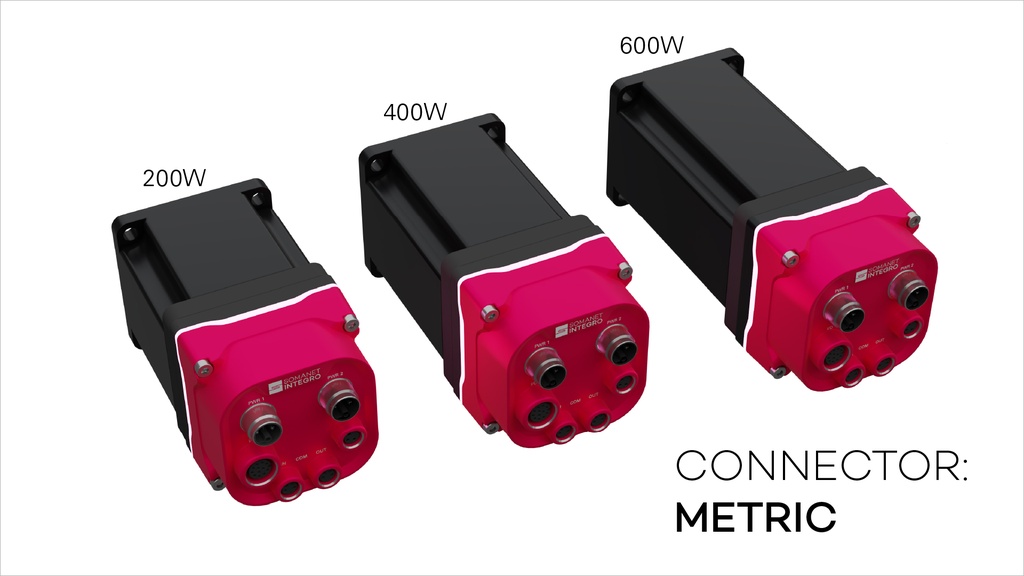

ACTILINK-SC Integro 6

https://catalog.synapticon.com/web/image/product.template/722/image_1920?unique=17052da

Integrated Servomotors based on SOMANET Integro.

The ACTILINK-S Integro series motors offer the highest power density in the smallest space and integrate the SOMANET Integro series into cost-effective and reliable servo motors.

Enjoy all the benefits of our fully equipped ServoDrive series for servo motors  - already assembled and ready for use.

0.00 € 0 EUR 0.00 € VAT Excluded

RFQ

Not Available For Sale

  • Power
  • Connector Variant
  • Brake Option
  • Field Bus
  • Integrated Encoder - Resolution
  • Multiturn
  • Inputs / Outputs
  • Safety Option
  • Functionality Set

This combination does not exist.

Contact Us

 Product information

Here you can download the product information of our ACTILINK-S Series

Documentation

Technical documentation and downloads (datasheets)

Specifications

Power 200 W (flange 60 mm / length 1 / 48 V / 3000 rpm) or 400 W (flange 60 mm / length 2 / 48 V / 3000 rpm) or 600 W (flange 60 mm / length 3 / 48 V / 3000 rpm
Connector Variant Connector Variant: Metric 2 Power Connectors or Connector Variant: Metric 1 Power Connector (available on request) or Connector Variant: Y-Tec or Connector Variant: I-Tec or Connector Variant: Open Leads (available on request)
Brake Option Brake: None or Brake: Yes
Field Bus Field Bus: EtherCAT or Field Bus: EtherNet/IP or Field Bus: PROFINET or Field Bus: CAN (available on request)
Integrated Encoder - Resolution Integrated Encoder: 18 bit or Integrated Encoder: 14 bit (available on request) or Integrated Encoder: 12 bit (available on request)
Multiturn Multiturn: Yes or Multiturn: No (available on request)
Inputs / Outputs IO: 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext. Enc. or IO: 24 V Out + 2x DI (available on request) or IO: None (available on request)
Safety Option Safety: STO+SBC via IO or Safety: None (available on request)
Functionality Set Full Performance Servo or Full Performance Servo - Micro PLC Integrated (available on request) or Servo with Limited Command Input Dynamics (available on request)
