ACTILINK-SC Integro 6

https://synapticon.odoo.com/web/image/product.template/722/image_1920?unique=677a987

Integrated Servomotors based on SOMANET Integro.

The ACTILINK-S Integro series motors offer the highest power density in the smallest space and integrate the SOMANET Integro series into cost-effective and reliable servo motors.

Enjoy all the benefits of our fully equipped ServoDrive series for servo motors  - already assembled and ready for use.

0.00 € 0 EUR 0.00 €

780.12 €

RFQ

Not Available For Sale

  • Power
  • Connector Variant
  • Brake Option
  • Integrated Encoder - Resolution
  • Multiturn
  • Inputs / Outputs
  • Safety Option
  • Field Bus

This combination does not exist.

 Datasheet

Here you can download the datasheet of our ACTILINK-S Series

Documentation

Access the documentation (Registration needed)

Specifications

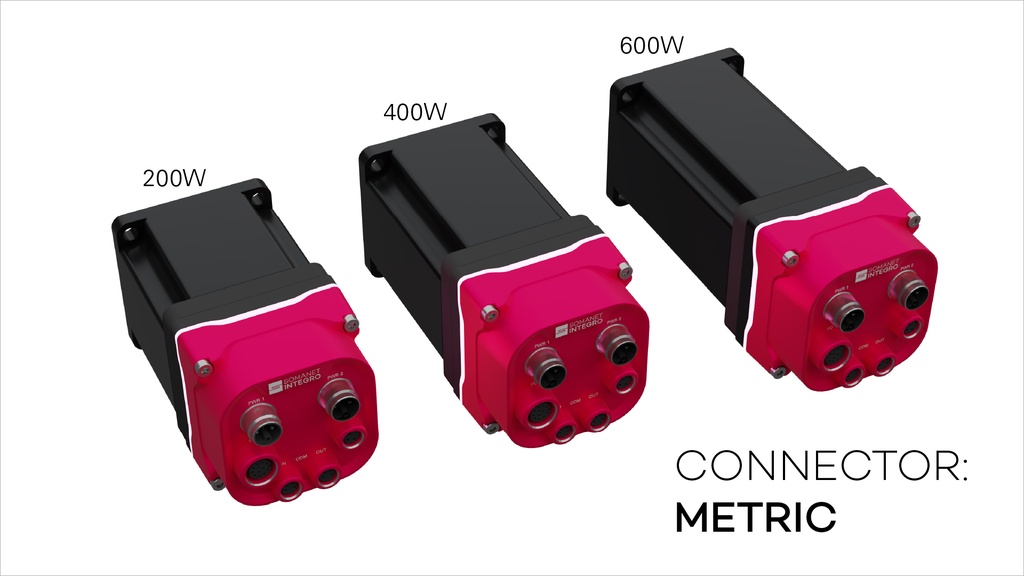

Power 200 W (flange 60 mm / length 1 / 48 V / 3000 rpm) or 400 W (flange 60 mm / length 2 / 48 V / 3000 rpm) or 600 W (flange 60 mm / length 3 / 48 V / 3000 rpm
Connector Variant Connector Variant: Metric or Connector Variant: Y-Tec or Connector Variant: I-Tec or Connector Variant: Open Leads
Brake Option Brake Option: None or Brake Option: Brake
Integrated Encoder - Resolution Integrated Encoder: 18 bit or Integrated Encoder: 14 bit or Integrated Encoder: 12 bit
Multiturn Multiturn: Yes or Multiturn: No
Inputs / Outputs Inputs / Outputs: 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext. Enc. or Inputs / Outputs: 24 V Out + 2x DI or Inputs / Outputs: None
Safety Option Safety Option: STO/SBC via IO or Safety Option: None
Field Bus Field Bus: EtherCAT or Field Bus: EtherNet/IP or Field Bus: PROFINET or Field Bus: CAN
